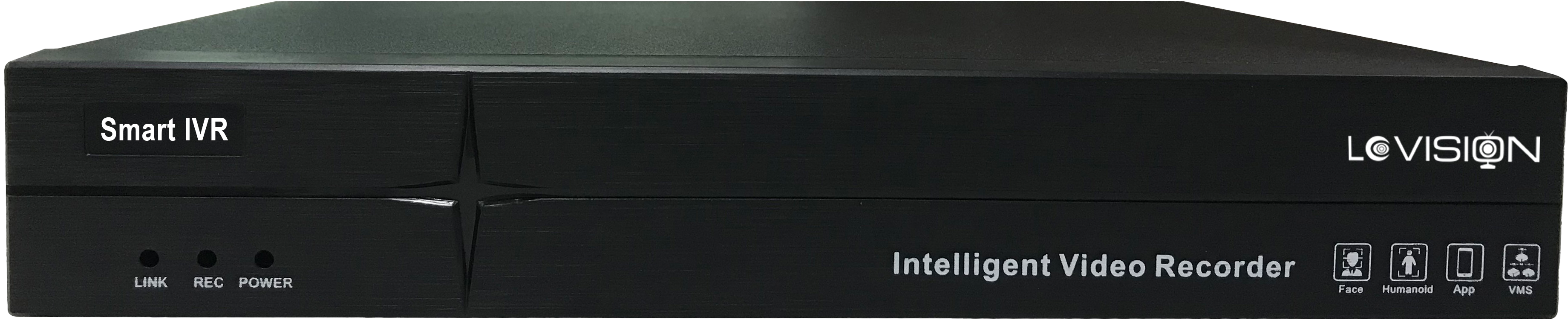

LC-IB-1-10-A-A0
10CH Intelligent NVR，Support 10 CH 4K IP camera input and output，Support IPC smart analysis: area intrusion, loitering, line-crossing detection, illegal vehicle detection, absence detection, retrograde detection. Supports voice alarm function in multiple modes. Support to upgrade IPC by online or memory, modify IP camera address and light board parameters, Support 1 pcs HDD (max 16TB), 1CH VGA, 1 CH HDMI, 2 pcs USB, Supports mobile phone monitoring
Features
● Support 10 Channels IPC input（8MP/D1+10 CH Preview+4CH playback）
● Support Smart 265, H265, H264 compression format
● Support synchronized recording,remote view,backup recording in MP4 format, mobile view
● Support VGA/HDMI
● Support preview image and playback image electronic amplification
● Support RTSP,GB28181, ONVIF protocol
● Support RTMP stream push
● support DDNS,UPNP…etc
● Support alarm capture,send alarm information by email
● Support WEB, mobile view,IMS surveillance
●Support IPC smart analysis: area intrusion, loitering, line-crossing detection, illegal vehicle detection, absence detection, retrograde detection
● Support channel patrol grouping
●Support network inspection-network traffic monitor, network-detect packet,network diagnosis..etc
● Support max 4CH 1080P playback
● Support 10 CH 4K decode and 4K display output
● Support to add IPC manually or automatically in LAN
● Support to upgrade IPC online and by memory
● Support to maintain IPC under private protocol, including restore, restart, enable or disable all network function
● Support disconnected network supplement function, optimize bandwidth incoming up to 80M
![]()
Specification
| System | Embedded LINUX design, pure hard decoding, watchdog, hard disk storage, HDMI HD display, IP network video access |
| Video Mode | Split 1 4 6 8 10 Decode 4K 4*1080P 4MP+5*D1 4MP+7*D1 10*D1 |
| Network Video Input | Incoming bandwidth 80Mbps; |
| Video Output | 1CH HDMI output,1CH VGA output,Same origin as HDMI;resolution: 3840×2160,1920×1080,1440×900,1280×1024,1280×800,1024×768 |
| Support IMS preview , support APP preview | |
| Support split,1/2/4/6/8/9/10CH realtime preview | |
| Recording resolution | Support 720P/960P/1080P/3MP/4MP/5MP/4K |
| Video Decoding Parameters | Support Smart265/H.265/H.264 decode |
| NVR playback 4 CH (1*4K) ; max support 4 CH playback on IMS | |
| Audio | G.711; support HDMI audio output, support audio output（3.5mm hole) |
| Storage Management | 1 pcs SATA port, max support 16TB HDD |
| Support timing recording, alarm recording, timing and alarm recording; alarm recording includes (motion detection, alarm input, human detection, area intrusion, loitering, line-crossing detection, illegal vehicle detection, absence detection, retrograde detection ) | |
| Support the backup of external USB storage devices (such as ordinary USB flash disk and mobile hard disk) | |
| User Management | Max support 32 users |
| Network Port | 1 pcs RJ45 port, support 10/100M self-adaptive; support TCP/IP,IPv4, DHCP,NTP,RTSP,ONVIF,P2P,SMTP, GB28181…etc network protocol; |
| External Interface | 2pcs USB2.0 ports (rear); support mouse, USB upgrade, import and export |
| Buzzer | Support buzzer alarm |
| Function | Support preview/recording/transfer/remote service, support alert linkage, support IMS monitor software, support P2P cloud service |
| Working Temperature | -10℃～＋55℃ |
| Working Humidity | 10%～90% |
| Power Consumption | DC +12V/2A,≤2W power consumption (without HDD) |
